Fagor iNova Heated Recovery Pass-Through Dishwasher - WHC-502TRCBD

Fagor iNova Heated Recovery Pass-Through Dishwasher - WHC-502TRCBD

$12,316.00
$14,490.00
$12,316.00
Sale Sold out
Shipping calculated at checkout.

WHC-502TRCBD

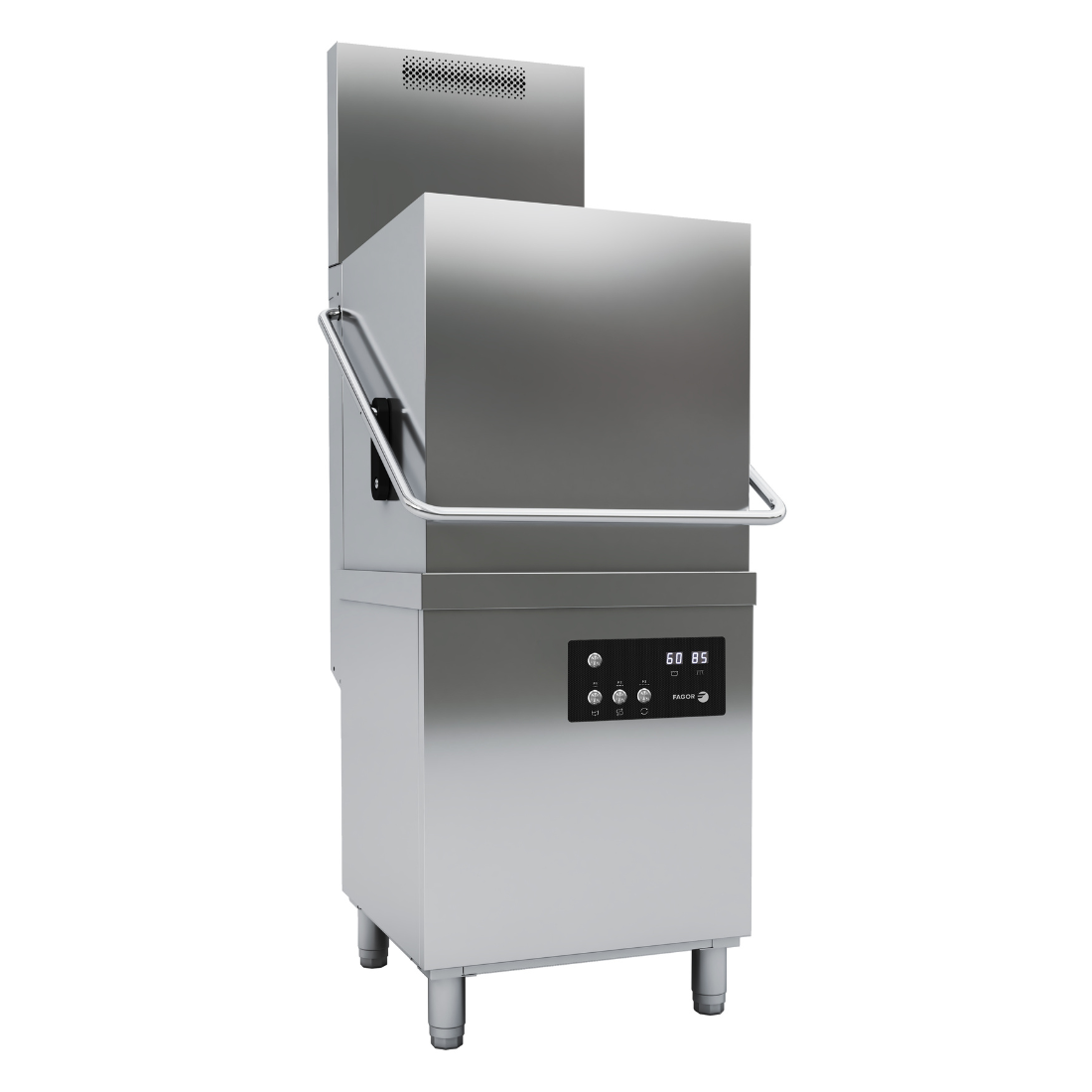

Fagor iNova Heated Recovery Pass-Through Dishwasher - WHC-502TRCBD





Hood-type dishwasher concept range with a heat recovery system for a 500x500 basket with mains pressure, LED displays, drain pump and detergent dispenser



Key Features

  • Energy Efficiency: Reuses waste heat to preheat incoming water, reducing energy use.
  • Lower Operating Costs: Cuts down on energy bills through efficient heat recovery.
  • Improved Working Environment: Minimises hot steam release, keeping the kitchen cooler and more comfortable.
  • No Need for Direct Exhaust Ventilation: Eliminates the requirement for an external exhaust hood, saving on installation costs.
  • Hourly production: 40 baskets/ hour
  • Clearance (max ware height): 450mm
  • Electronic control
  • Wash cycles: 55”/75”/120
  • Double rotating wash and rinse systems, made of AISI-304 stainless steel
  • Wash pump, 750W each
  • Drain pump: 100W drainage cycle
  • Tank with 3 kW heating power
  • Tank capacity: 33 litres
  • Water consumption: 2.2 litres/cycle
  • Thermostatic temperature control: washing at 60℃ and rinsing at 85℃
  • Two-digit LED displays
  • Hydraulic rinse aid dispenser
  • Dual-flow wash pump with soft-start
  • Double-stage filtration system
  • Dual-flow wash pumps
  • A magnetic micro switch to stop the cycle in case of accidental opening of the hood
  • Adjustable legs
  • Supplied with 1 dish basket, 1 glass basket and 1 cutlery container
  • Watermark approved
  • Can be converted to single-phase
  • Precision of working temperatures
  • Temperature control by electronic probes
  • Configurable control
  • i-ERROR DIAGNOSIS: Error identification on screen
  • Basket: 500x500
  • Drain pump




2 Years Parts and Labour Warranty

Product Width (mm)

Product Depth (mm)

Product Height (mm)

Net Weight (kg)

Power

Errors and omissions excepted (E&OE)
