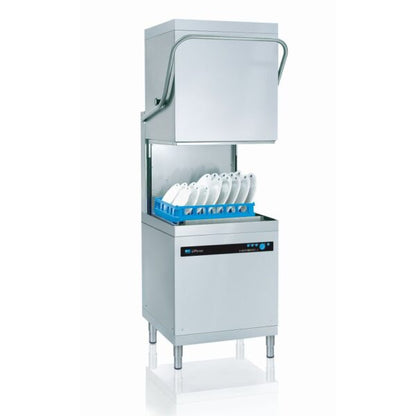

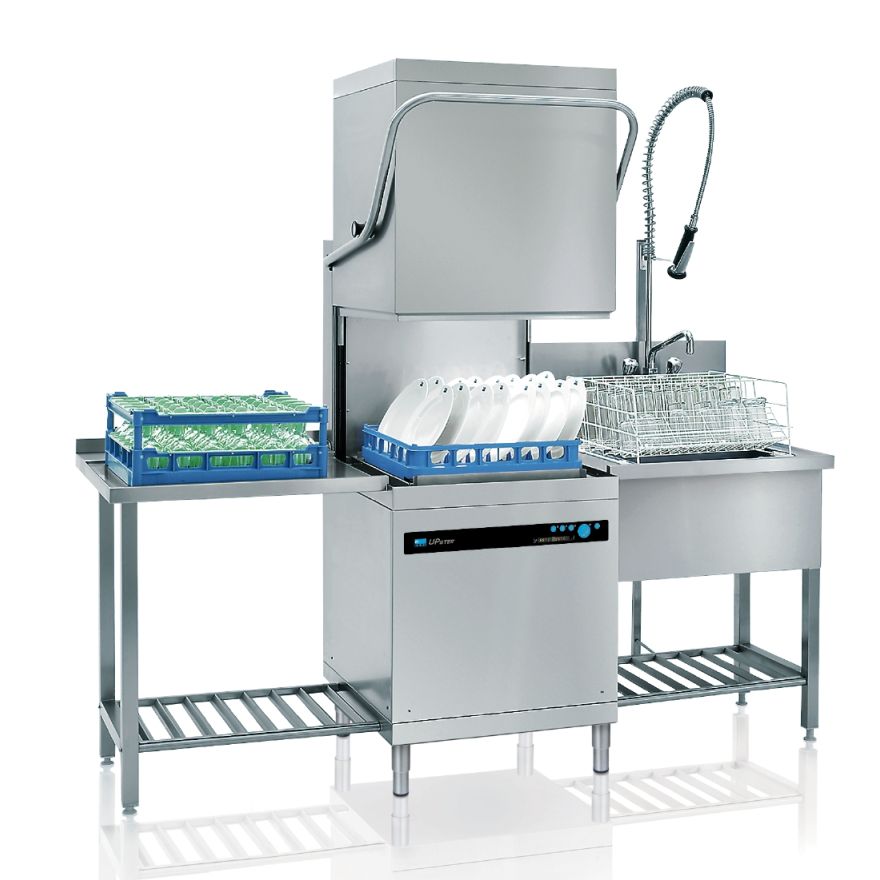

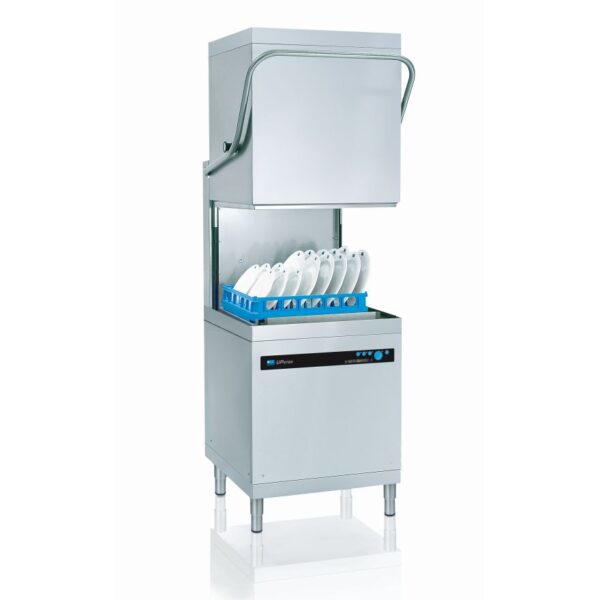

MEIKO UPster® H500 Industrial Dishwasher

Pass through warewashing technology for a powerful wash and maximum convenience.

Everything has to fit down to the last cent.

The UPster® H 500 industrial dishwasher presents consistent power and wash convenience at starter prices. No clouds of steam when you open the machine, plus convenient automatic start-up. A terrific choice for tall washware, too, such as large plates, serving dishes and trays.

24 month parts and labour within a 100 km radius of Sydney, Melbourne, Brisbane, Perth, Adelaide, Canberra, Gold Coast, Sunshine Coast, Newcastle, and Wollongong. If you are outside of this area, then the second year is parts only.

Optional 4 Year Warranty – National Deal

• Planned Preventative Maintenance (PPM) must be conducted once per year with Meiko for the duration of the 4 year warranty period – $500 + GST per year which will include some wearable parts. This is paid yearly (not in total for the 4 years) to Meiko directly.
• You must use Meiko Chemical for the duration of the 4 year warranty.
• Only valid for Meiko undercounter and hood type machines
• Only valid within 100km radius as mentioned above.

The process for the extended warranty needs to be followed:

• You registers your machine on Meiko website – https://www.meiko.com/en-au/service/warranty-registration
• Meiko team will call you once you register the 4 year warranty
• You will need to sign up on a 4 year PPM directly with Meiko. One payment per year.
• You will buy chemical through us.

Power and convenience under the hood

The automatic start-up on our industrial dishwasher UPster® H means it cleans with full convenience and full power. Wave goodbye to clouds of steam and poor air quality in the scullery. Instead, give way for serving dishes, large plates, and trays in the dishwasher with a passing height of 440 mm. What more could you want

The optional AirBox AktivAir will not let the steam escape!

• Centralised vapour management
• Keeps steam away from machine operators
• Built-in condensate drain
• Steam extraction initiated by dishwashing programme
• Continues running for specified time after programme finishes
• No filter technology = maintenance free

UPster® H 500

Large wash ware such as large plates, platters or trays are no problem for the UPster® H 500 industrial dishwasher. They easily fit in without much fuss, no tilting and juggling—and are perfectly clean

The UPster® H 500 features pass-through technology for even more power and maximum convenience. It offers consistent power and wash convenience at reasonable prices. No clouds of steam when you open the hood of the dishwasher, plus convenient automatic start-up. Thanks to the passing height of 440 mm, the UPster® H 500 is great choice for tall washware, too, such as large plates, serving dishes and trays.

Rack dimension 500 x 500 mm

Passing height 440 mm

Dimensions (W x Hmin x D) 635 ( 687) x 1520 x 750 (850) mm (with hood rod)

Programme cycle 90 / 150 / 240 s

Rack capacity/h (theoretical)  40 / 24 / 15 racks/h

Tank filling 22,0 l

Rinse water volume 3 liters/cycle

3NPE 400V 50Hz

Total connected load 8,5 kW

max. rated current: 17.2 A

Local fuse protection 20 A

Boiler heating 7.50 kW / 10.83 A

Tank heating 2.00 kW / 8.70 A

Wash pump 0.75 kW / 4.80 A

Protection class of the machine IP X4

Equipment Hood start

MIKE control

Infrared interface for wireless communication

Drain pump

Boiler safety device

Automatic self-cleaning when tank is drained

Minimum flow pressure 60 kPa / 0.6 bar in front of solenoid valve

Maximum pressure 500 kPa / 5.0 bar

Max. supply water temperature 60 °C

Ventilation flow rate 540 m³/h

Steam emission 1.0 kg/h

Sound level 65 dB(A)

Net / gross weight 98.0 kg / 130.0 kg (standard packaging)

Attention: Bench, Sink and Tap are not included. However, you can find them in other sections of our store.

A single-phase option is available for sites without 3-phase power supply. Washing cycle time will be approximately twice as long as the 3-phase version.

Measurements
